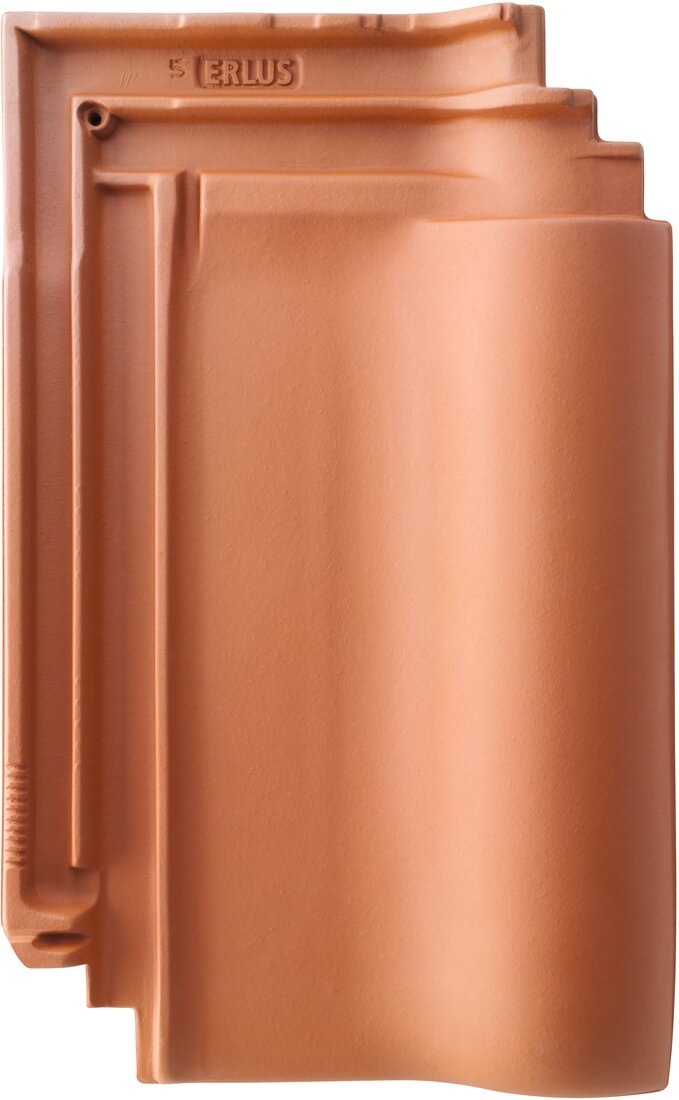

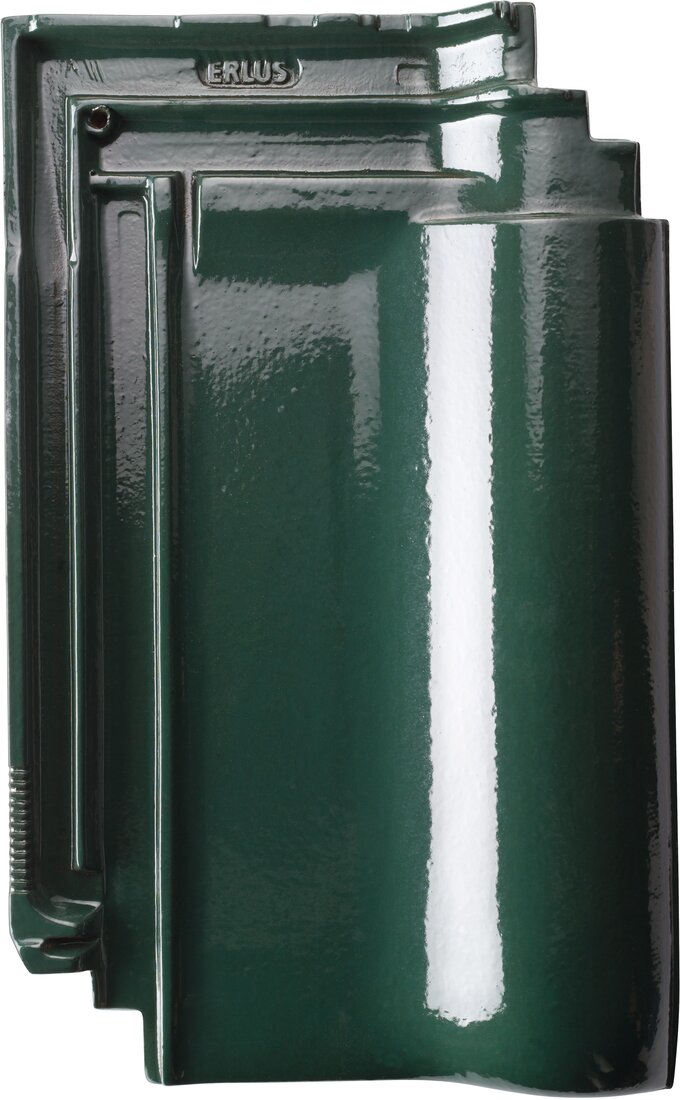

ERLUS E 58 MAX
Technical data
| Size: | aprox. 29.0 x 46.5 cm |
| Gauge: | aprox. 38.1 - 38.8 cm |
| Average cover width: | aprox. 22.7 cm |
| Quantity required per m²: | aprox. 11.5 Pieces |
| Weight per m² in accordance with DIN 1055 incl. battens: | aprox. 0.55 kN/m² |
| Real weight without battens: | aprox. 43 kg/m² |
| Pallet capacity: | 240 Pieces |
| Pallet weight: | aprox. 1,035 kg |
| Bundle capacity: | 5 Pieces |
| Hail resistance class: | 4 |
| Gauge class: | 38,5 cm |
| Average eaves gauge | aprox. 36 cm |

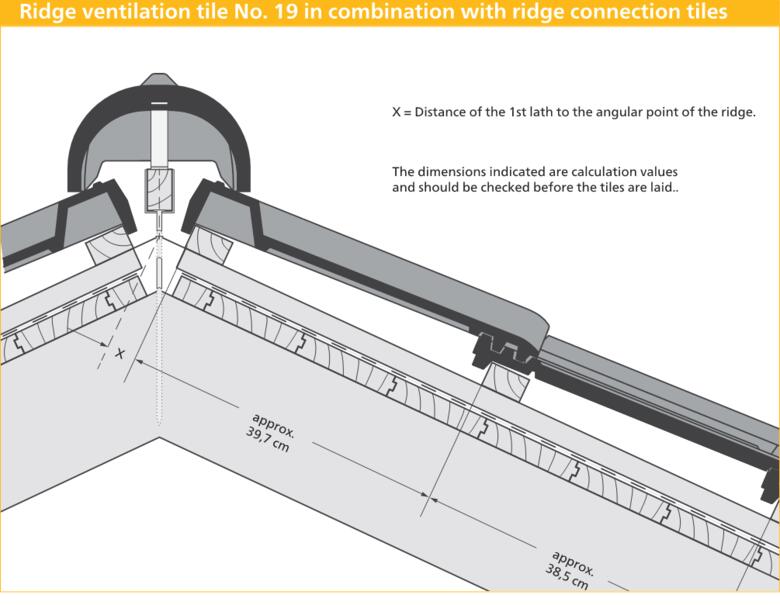

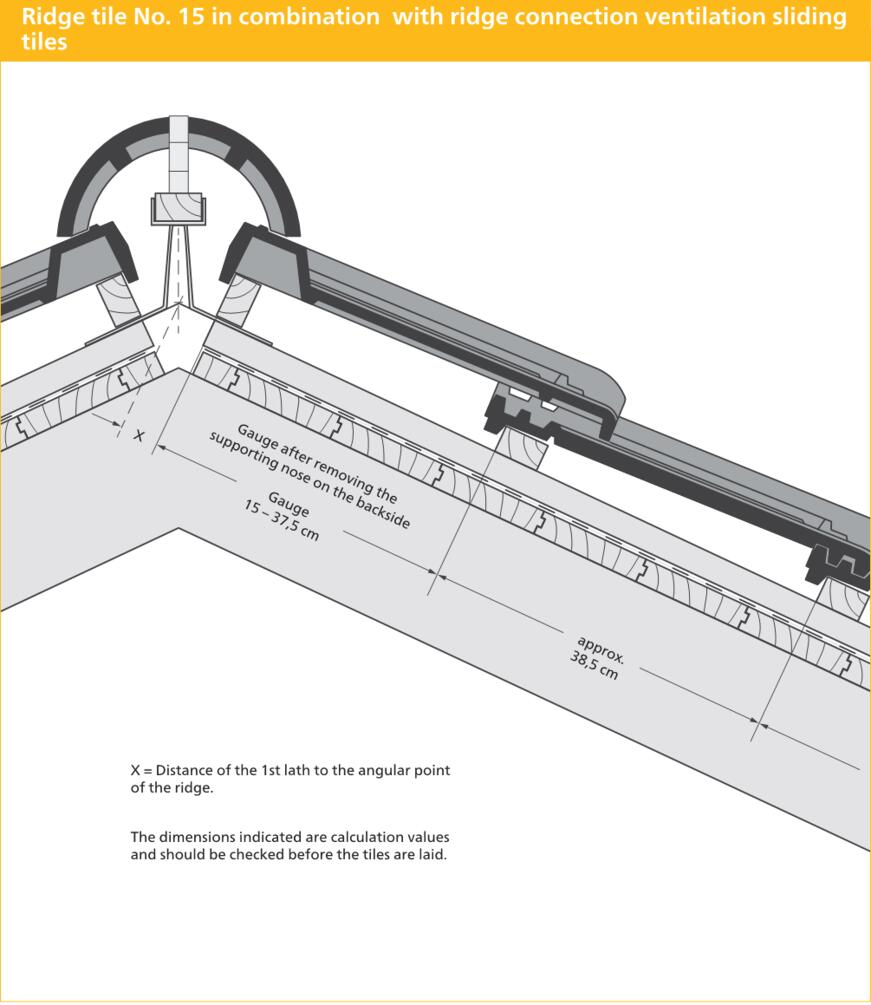

| X (distance) in mm | Ridge connection tile1) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Roof pitch in ° | 10° | 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | 60° |
| Ridge tile no. 15 | 60 | 50 | 45 | 45 | 40 | 40 | 35 | 40 | 35 | - | - |
| Ridge ventilation tile no. 15 Lü | 70 | 65 | 60 | 55 | 50 | 45 | 45 | 40 | 40²⁾ | 40²⁾ | 40²⁾ |
| Ridge tile no. 18 | 40 | 35 | 35 | 30 | 30 | 30 | 25 | 25 | 25 | 25 | - |
| Ridge ventilation tile no. 19 Lü | 40 | 35 | 30 | 30 | 30 | 30 | 25 | 25 | - | - | - |
| Ridge tile no. 21 | 40 | 35 | 30 | 30 | 30 | 30 | 25 | 25 | 25 | 25 | - |
| X (distance) in mm | Standard tiles2) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Roof pitch in ° | 10° | 15° | 20° | 25° | 30° | 35° | 40° | 45° | 50° | 55° | 60° |
| Ridge tile no. 15 | 70 | 65 | 55 | 50 | 45 | 45 | 45 | 35 | 30 | - | - |
| Ridge ventilation tile no. 15 Lü | 65 | 65 | 60 | - | - | - | - | - | - | - | - |
| Ridge tile no. 18 | 50 | 45 | 45 | 40 | 35 | 30 | 25 | 25 | 30 | 25 | 20 |
| Ridge ventilation tile no. 19 Lü | - | - | - | - | - | - | - | - | - | - | - |
| Ridge tile no. 21 | 50 | 40 | 40 | 35 | 30 | 30 | 25 | - | - | - | - |
1) without aluminium ridge ventilation strap2) with aluminium ridge ventilation strap
Assignment of additional measures for the ERLUS E 58 MAX
According to the Central Association of German Roofers’ pamphlet on sub-roofs, sub-coverings and under-bracings, and the basic regulations of the Roofers’ Guild, regular roof pitch 20°, minimum roof pitch 10°, according to the generally accepted rules of technology.
Country-specific building standards and/or regulations must be adhered to, if no other contractual agreements have been made.

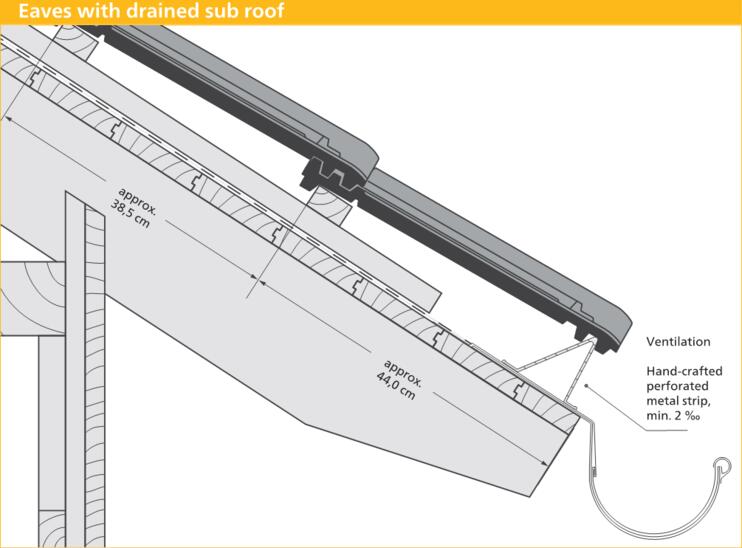

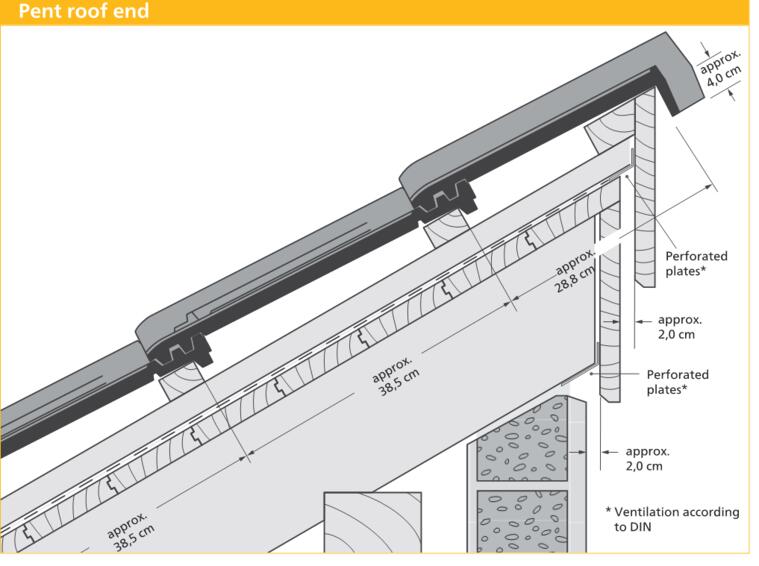

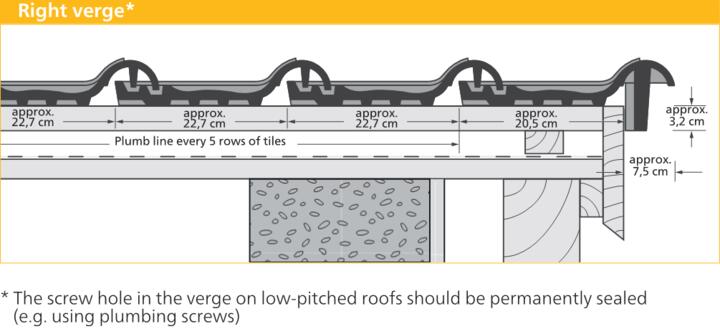

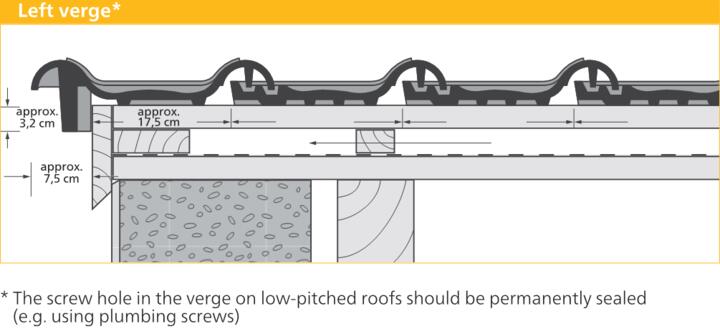

Technical drawings
These are the advantages of the
E 58 MAX
Classic flat roof tile
Cost-effective less battening and laying costs
Very easy to handle 4-tile corner, bundles of 5
Wide colour range
Complete accessories including aluminium accessories from one source
Optimized roof pitch: 20°
Especially robust and break-proof
Gauge class 38.5 cm model from the XXL family

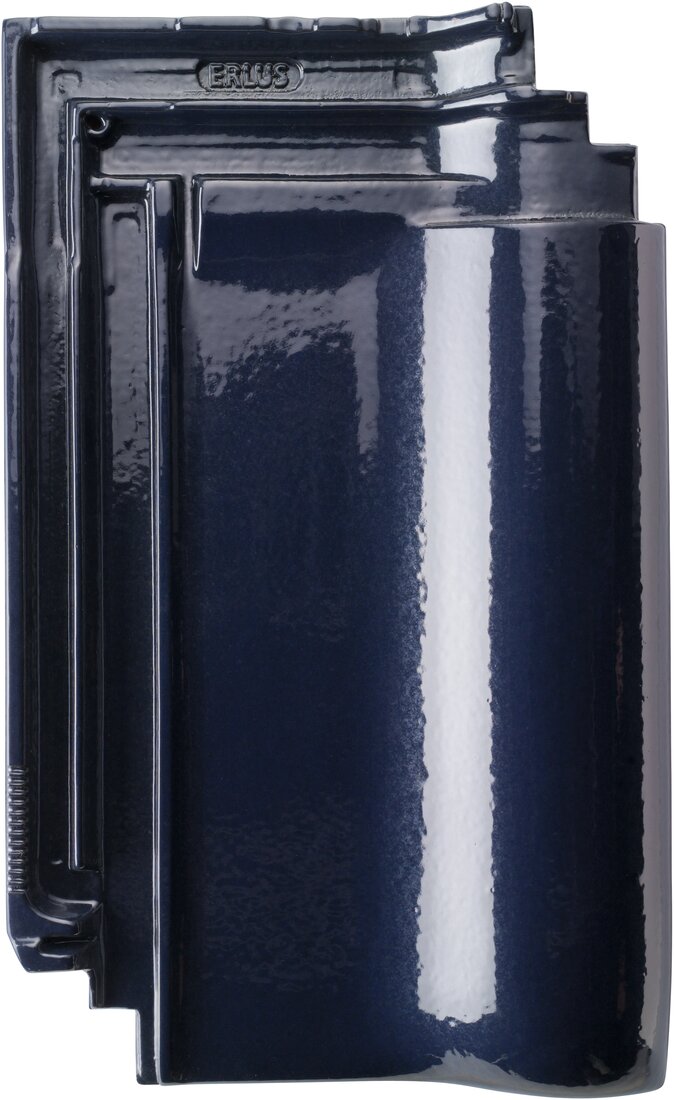

Standard tile
Standard tile
ERLUS Standard Accessories
Verge tile left
Verge tile right
Double roll tile
Ridge connection tile
Ridge connection verge tile left
Ridge connection verge tile right
Ridge connection double roll tile
Ridge connection sliding tile
Ridge connection sliding verge tile left
Ridge connection sliding verge tile right
Ridge connection ventilation sliding tile
Pent roof tile
Pent roof double roll tile
Pent roof verge tile left
Pent roof verge tile right
Ventilation tile
Snow stop tile
Ridge tile no. 15
Ridge end tile no. 15
Ridge compensation tile no. 15
Ridge ventilation tile no. 15 Lü
Ridge beginning tile no. 15 Lü
Ridge end tile no. 15 Lü
Ridge tile no. 18
Ridge end tile no. 18
Ridge compensation tile no. 18
Ridge ventilation tile no. 19 Lü
Ridge beginning tile no. 19 Lü
Ridge end tile no. 19 Lü
Ridge tile no. 21
Ridge end tile no. 21
Ridge compensation tile no. 21
ERLUS Special Accessories
Aluminium sanitary ventilator with base tile
Aluminium aerial with base tile
Aluminium solar outlet with base tile
Aluminium snow stop fence holder with base tile
Aluminium snow stop fence, 20 cm high
Aluminium snow stop incl. snow guard tube bracket with base tile
Aluminium snow guard tube, length 2 m
Aluminium connector for snow guard tube
Aluminium round wood holder with base tile

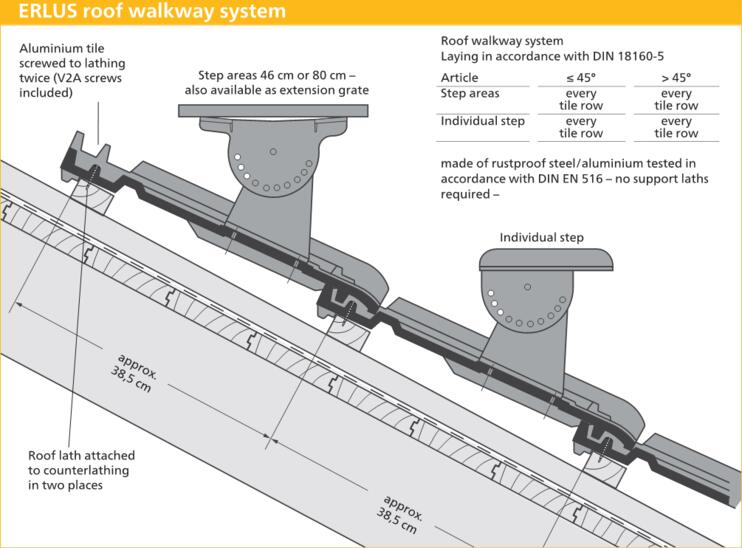

Aluminium step with base tile
Aluminium step grate 50 cm x 25 cm, with two base tiles
Aluminium step grate 80 cm x 25 cm, with two base tiles
Aluminium extension step grate, 80 x 25 cm, with base tile
Aluminium step grate bracket, uncoated, with base tile
Aluminium safety hooks for ladder, Type A, with base tile
Aluminium solar panel holder with base tile
Ceramic extension plate universal for ridge end tile
Ceramic hip cap no. 15 N
Ceramic hip cap no. 18 N
Ceramic hip cap für ridge beginning tiles no. 19
Ceramic hip cap for ridge end tiles no. 19
Ceramic hip cap no. 21 N
Ceramic hip cap with four outlets for rigde tiles
Ceramic hip start for ridge tiles no. 15
Ceramic hip start for ridge tiles no. 19
Ceramic hip start for ridge tiles no. 21 N
ERLUS universal solar module support, incl. ventilation tile
ERLUS universal storm clips I M for battens 24/48 mm
ERLUS universal storm clips II M for battens 30/50 mm
Ridge clips no. 15/17
Ridge clips no. 15/17 Lü
Ridge clips no. 18/21
Ridge clips no. 19 Lü
Aluminium ridge ventilation strap
Eave protection tape
Eave ventilation comb, PVC
Acrylic tile
Aluminium ridge end disc
Aluminium ridge end disc

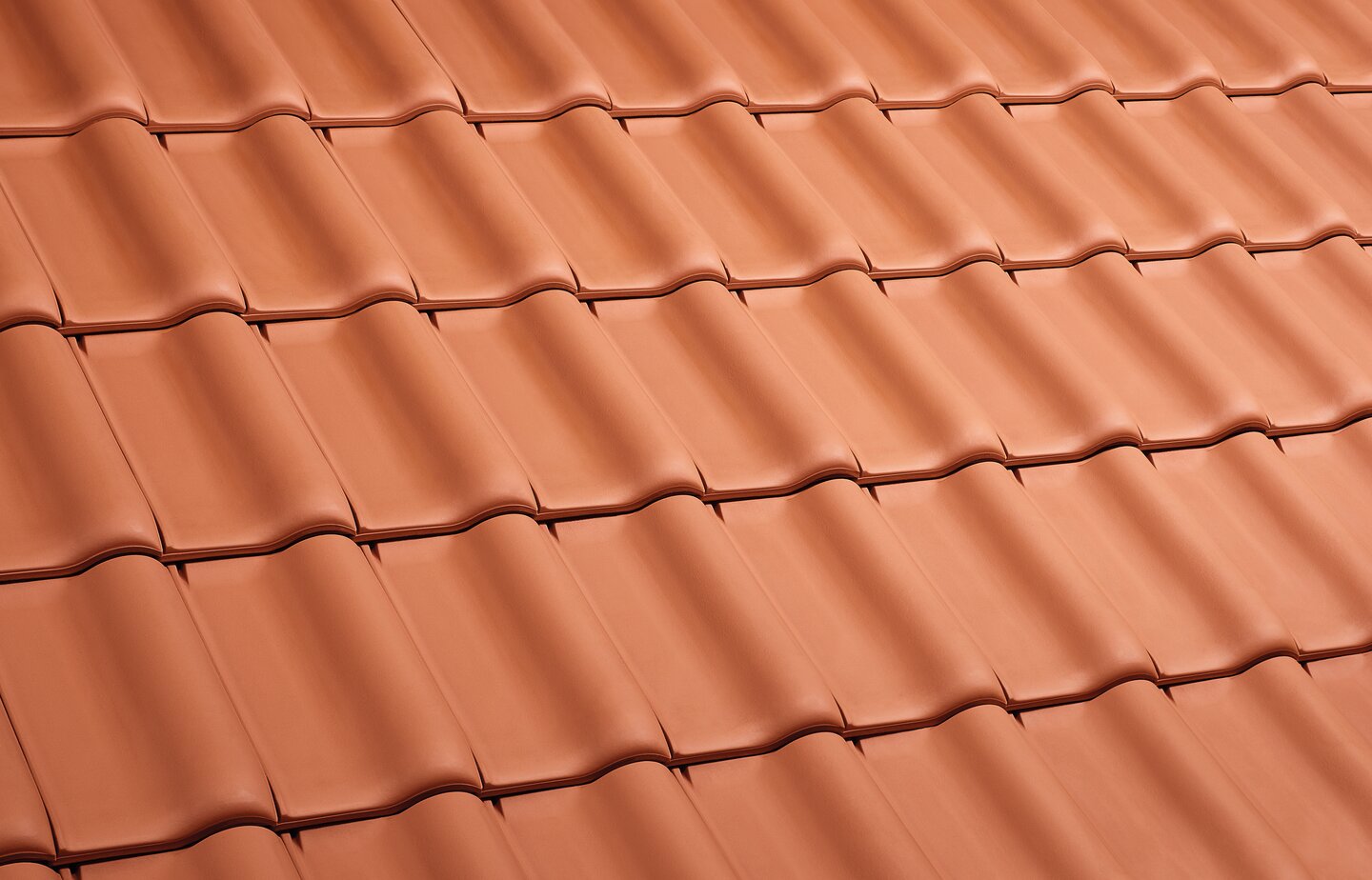

Roof surfaces

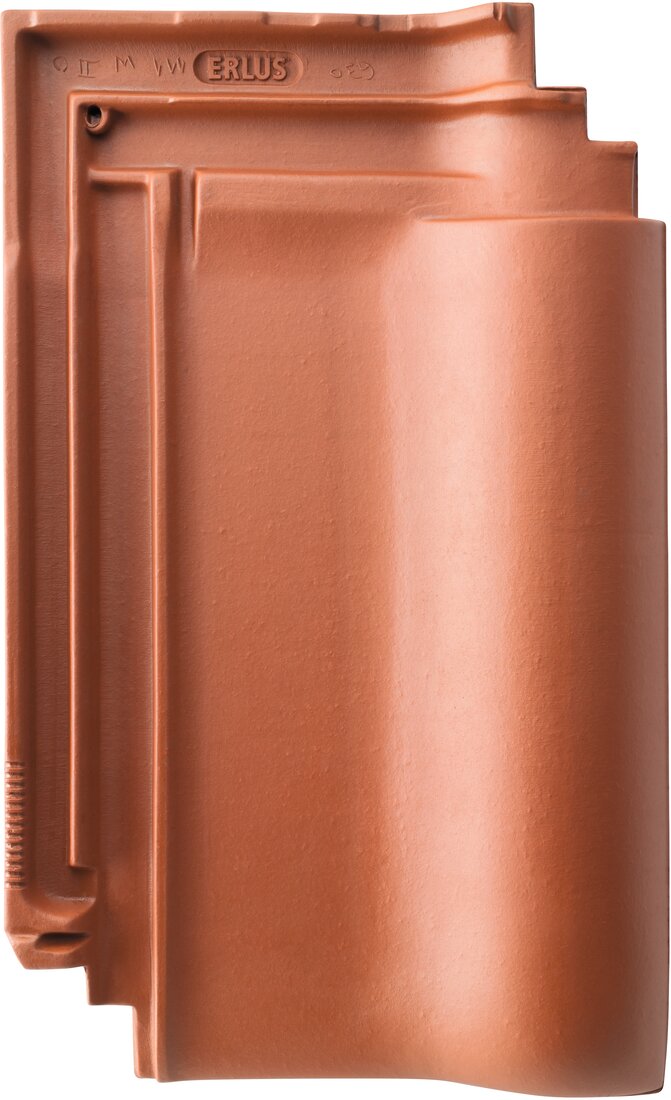

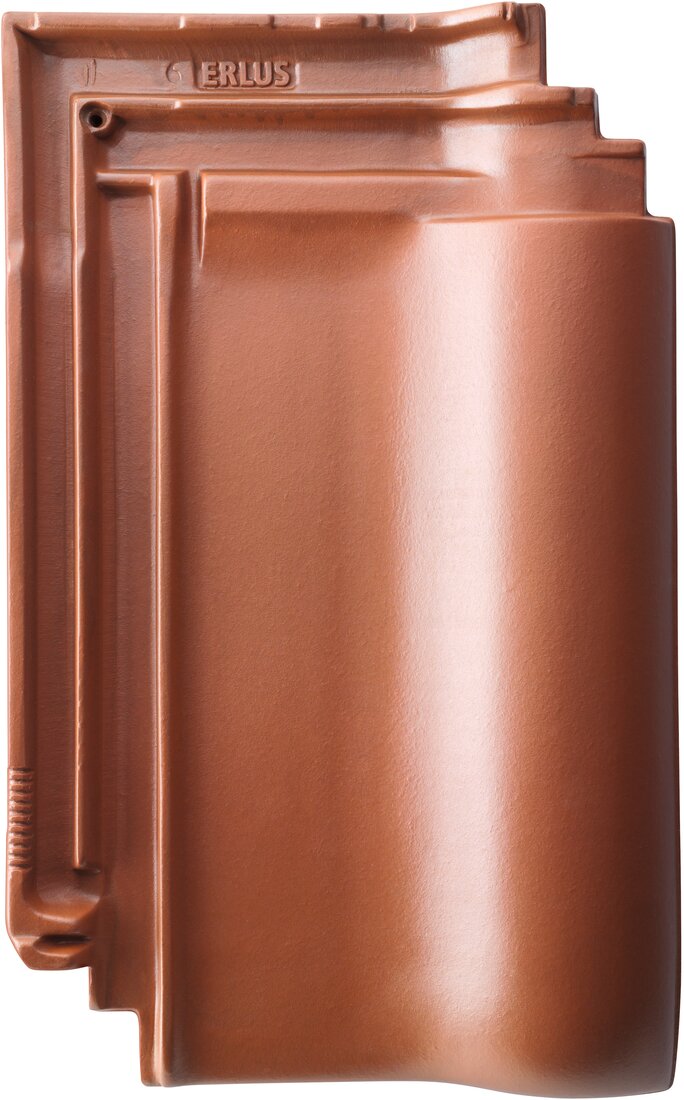

Natural red
Copper brown

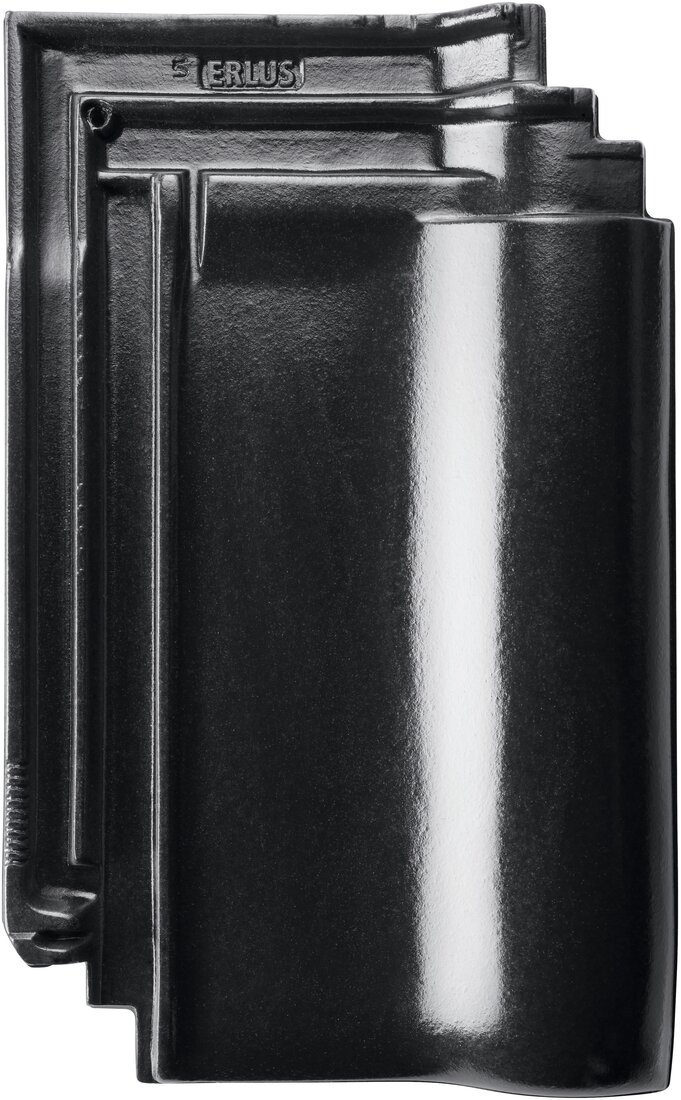

Diamond black
Antracite Completed projects

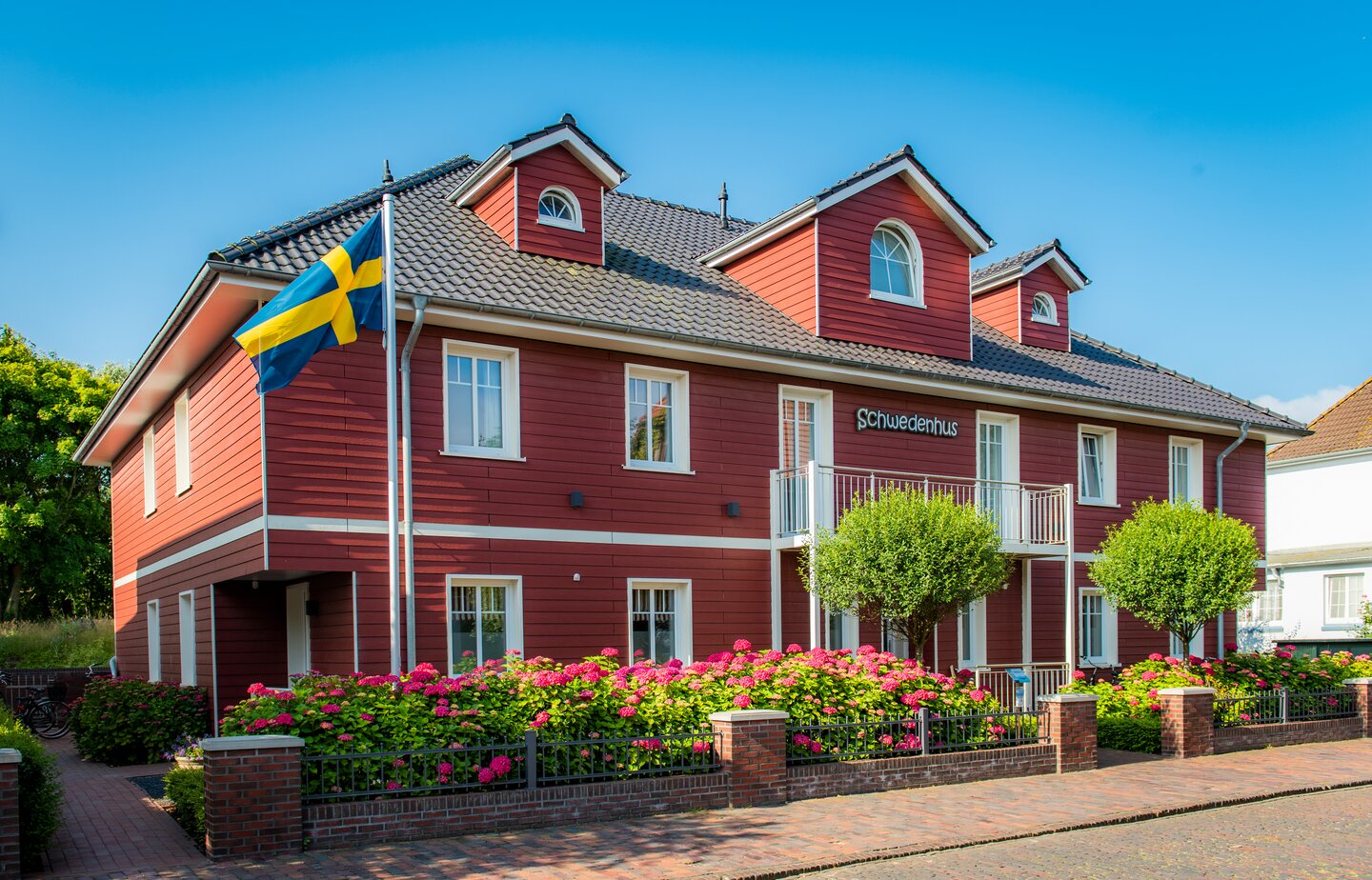

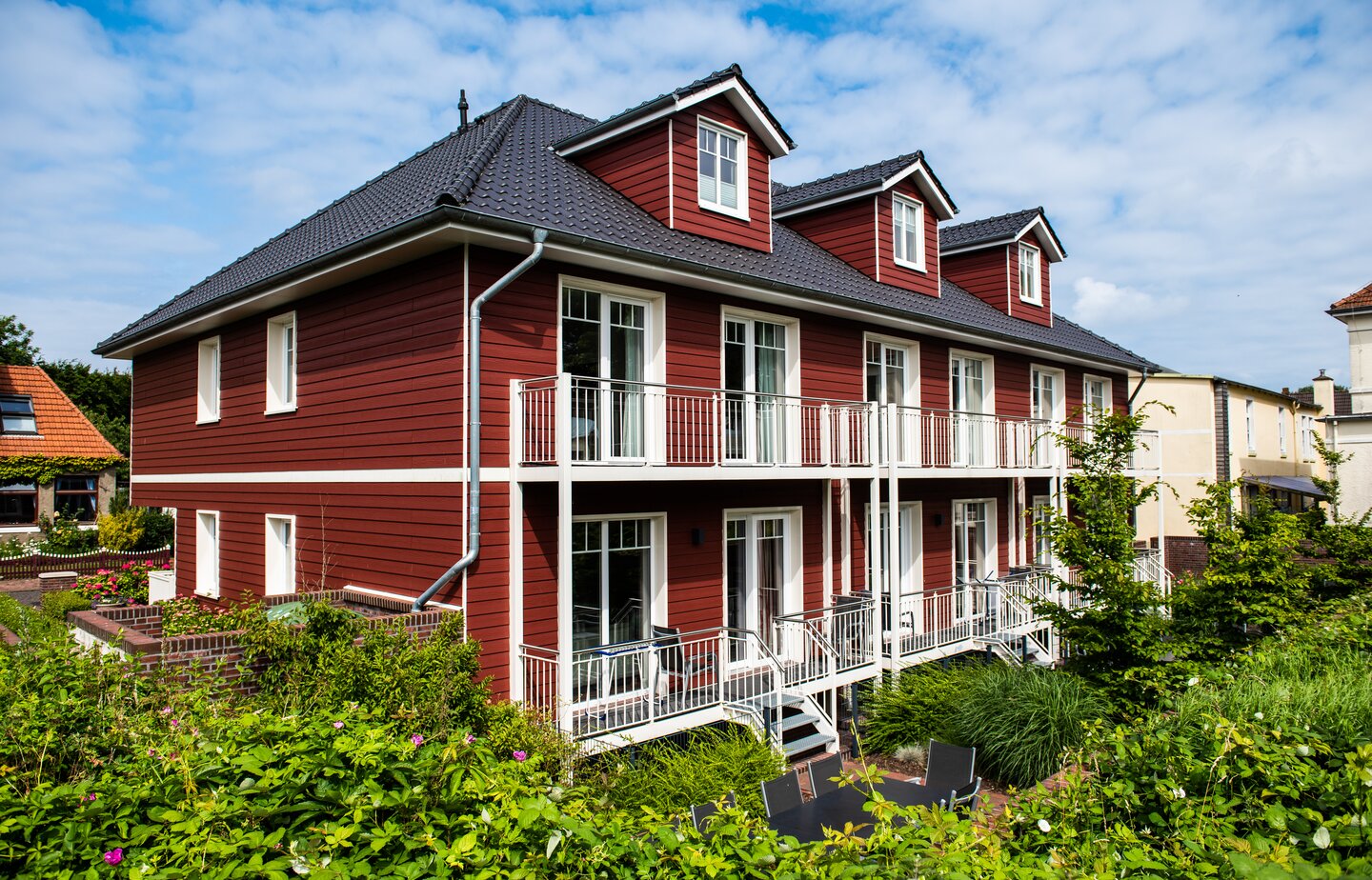

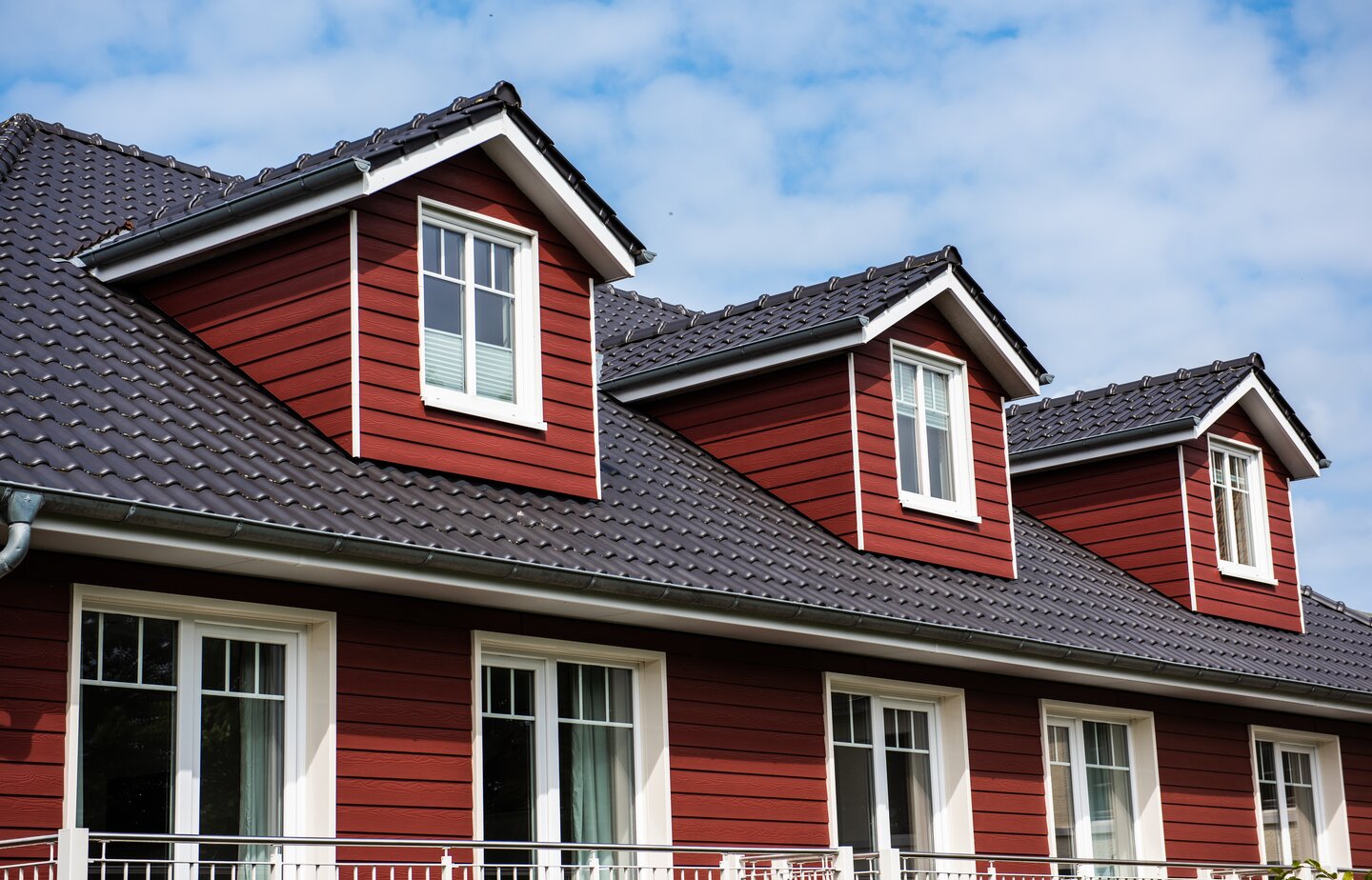

ERLUS E 58 MAX - Anthracite

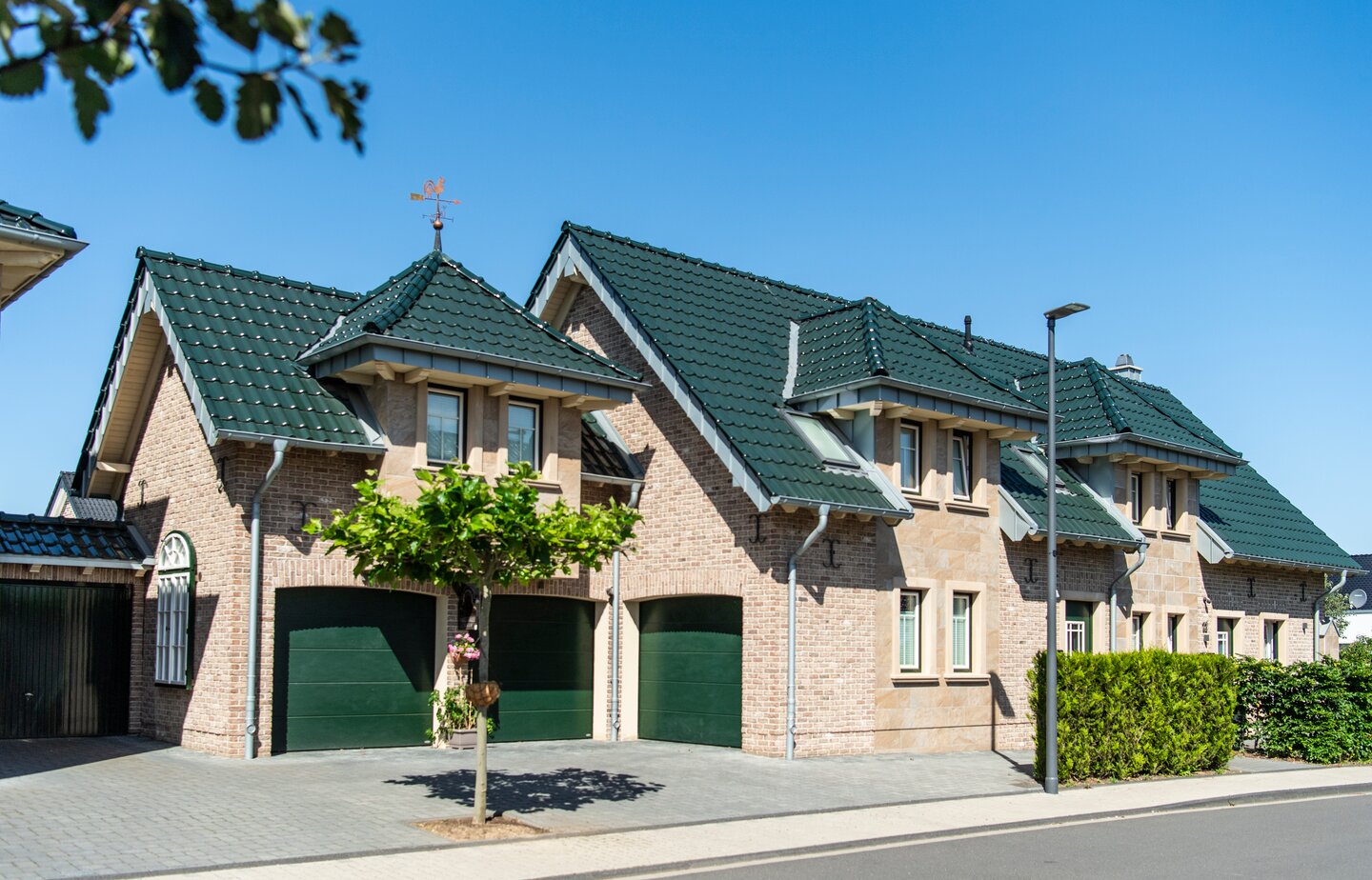

ERLUS E 58 MAX- Royal green

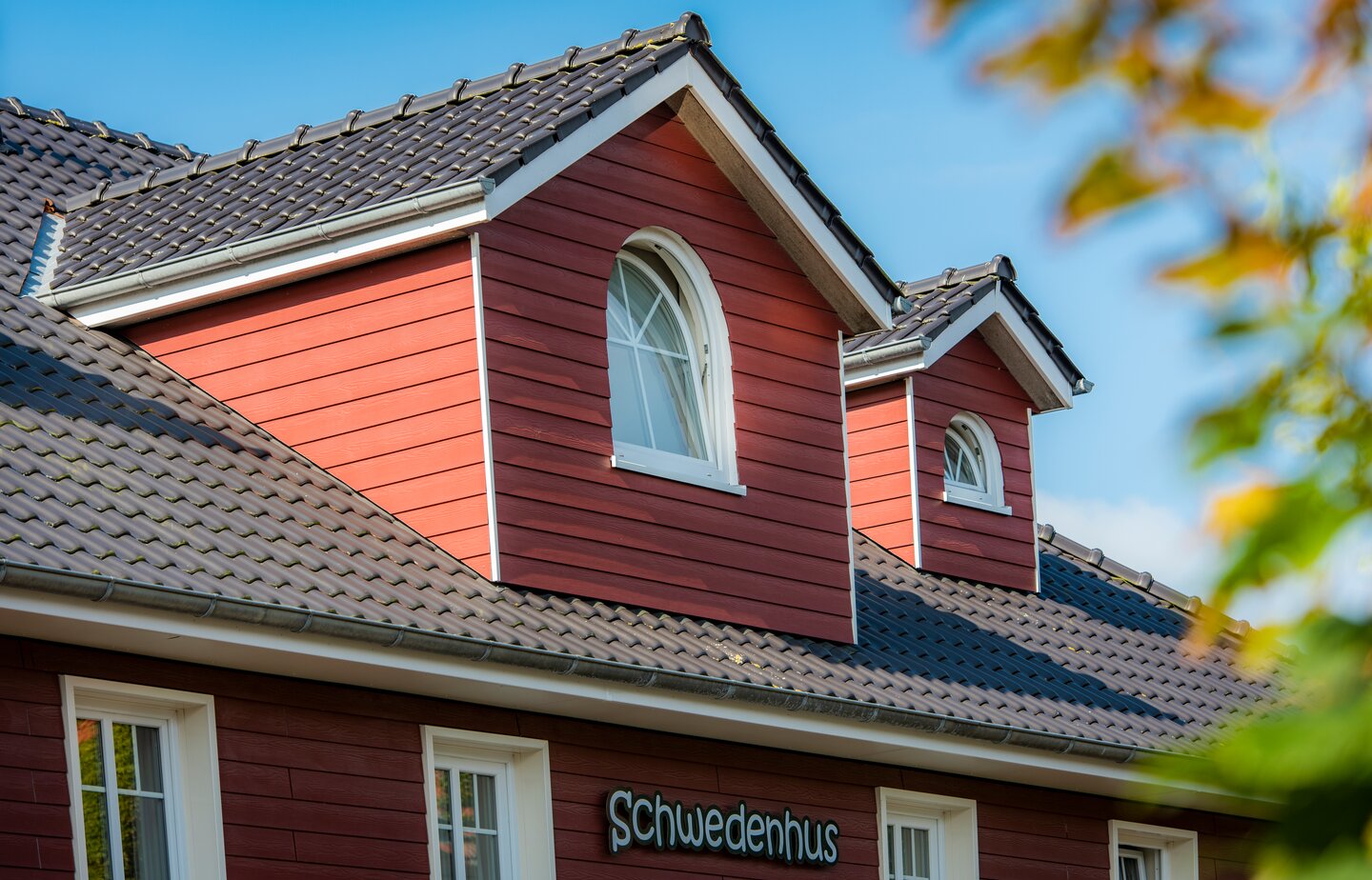

ERLUS E 58 MAX - Red
ERLUS E 58 MAX - Red
ERLUS E 58 MAX - Red

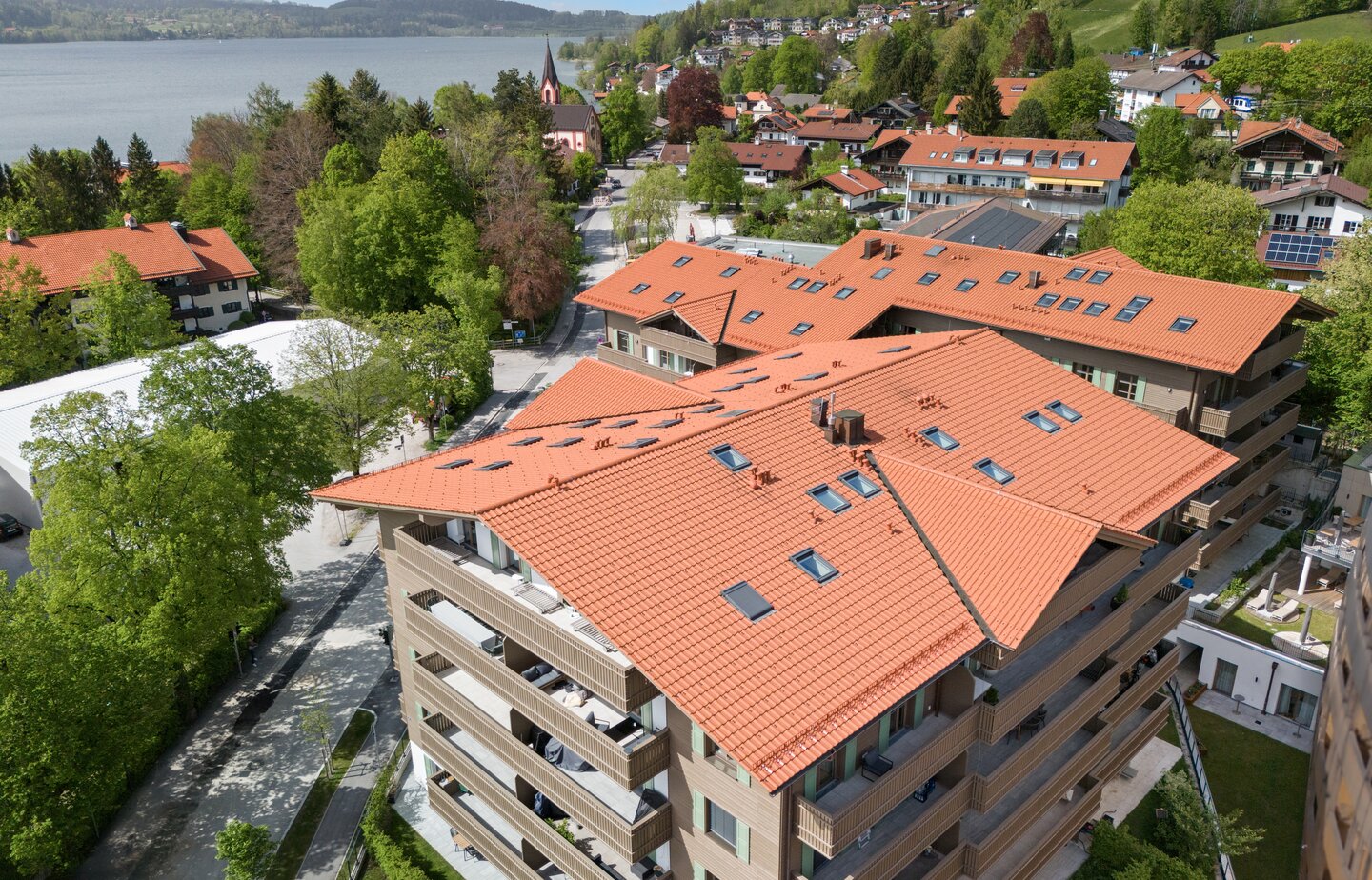

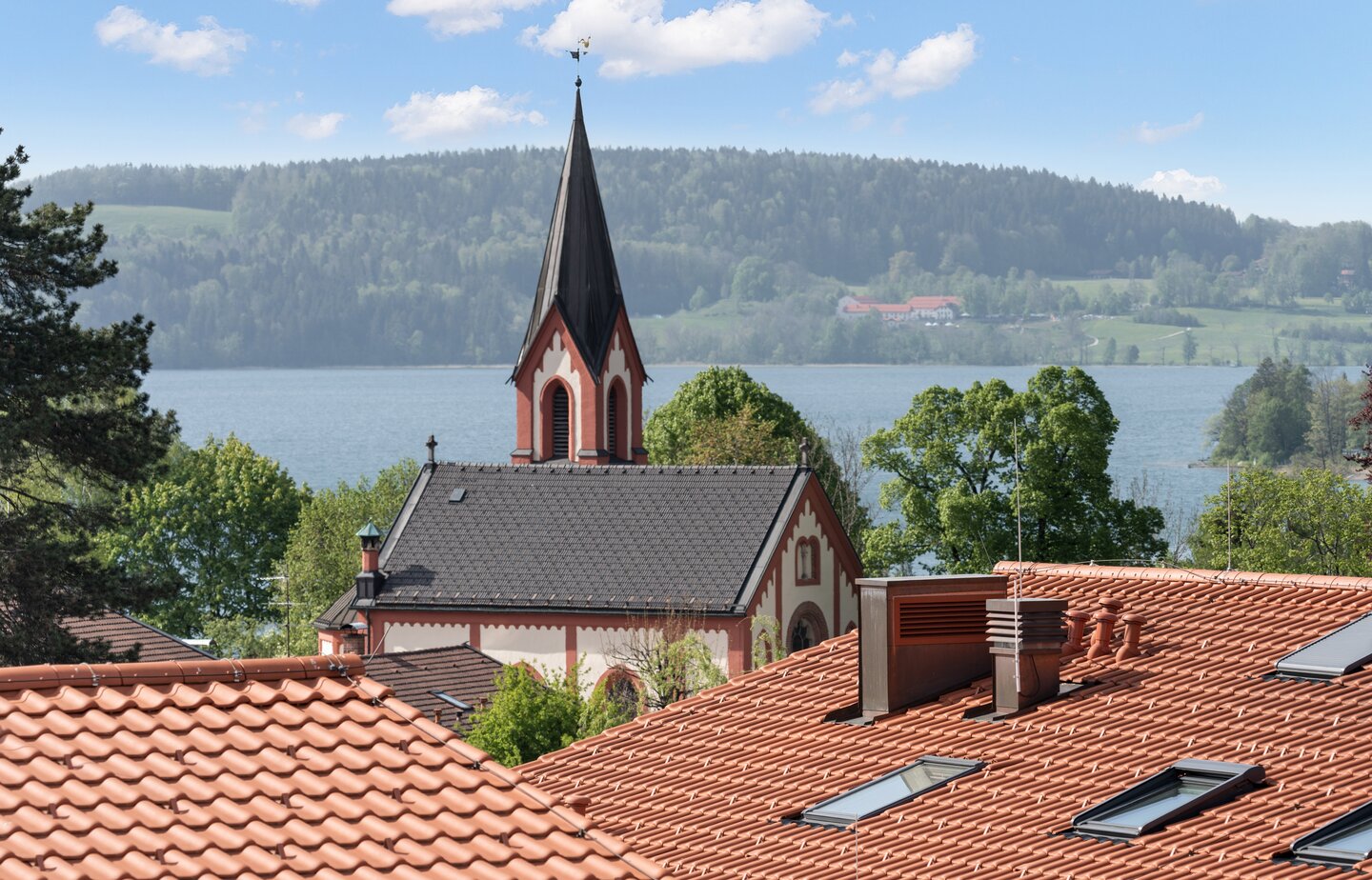

ERLUS E 58 MAX - Natural red
ERLUS E 58 MAX - Natural red

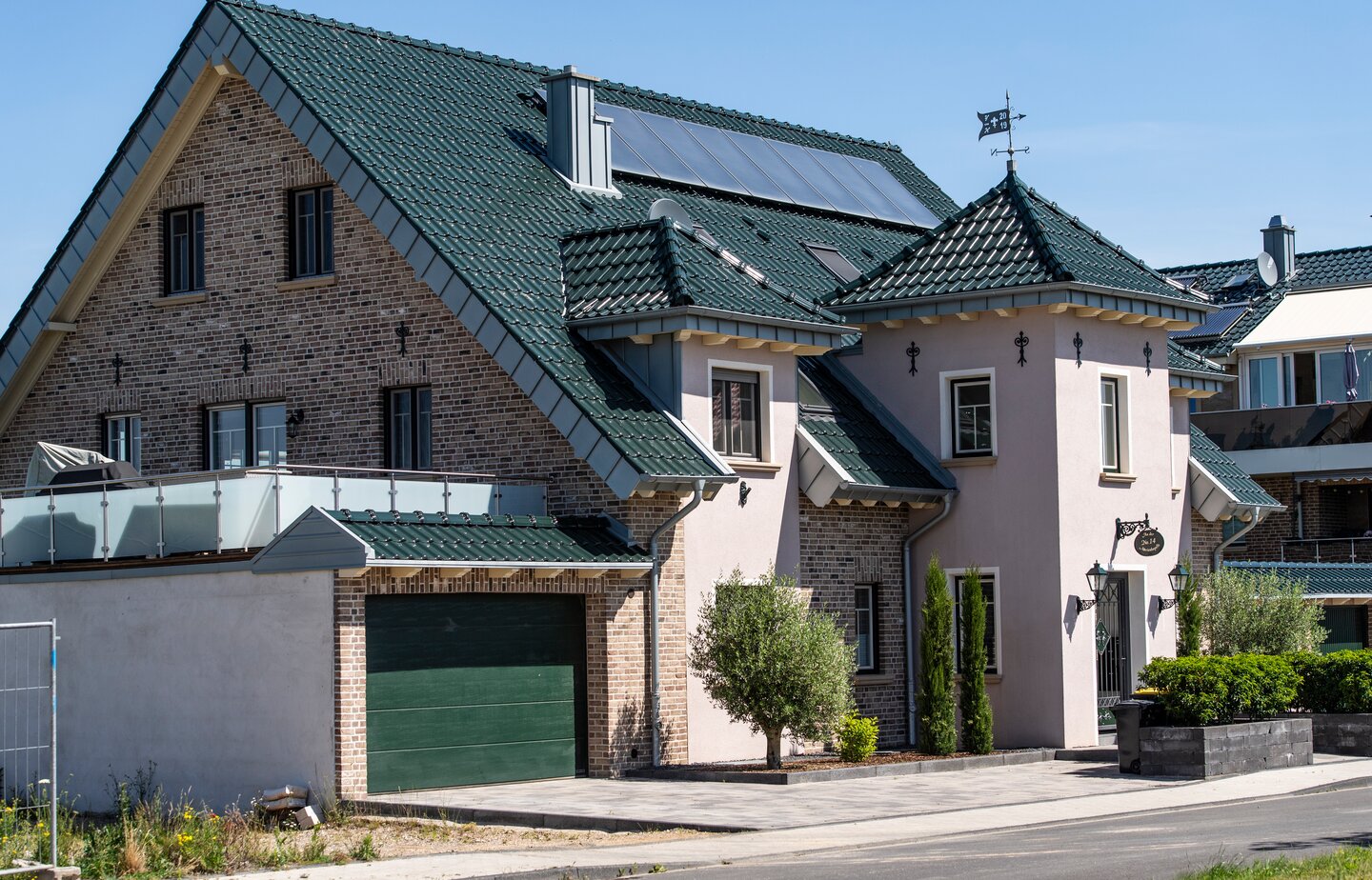

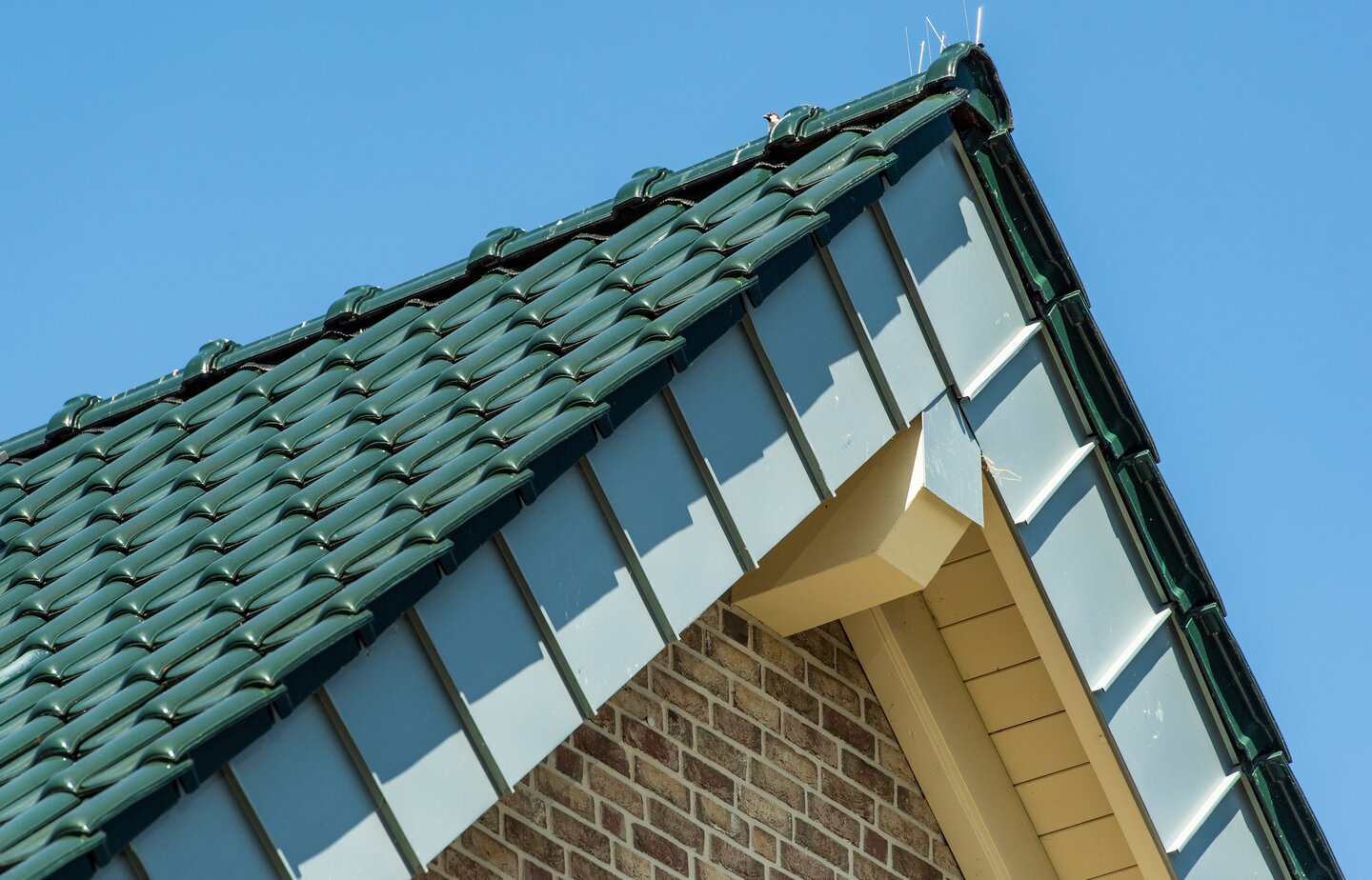

ERLUS E 58 MAX - Royal green

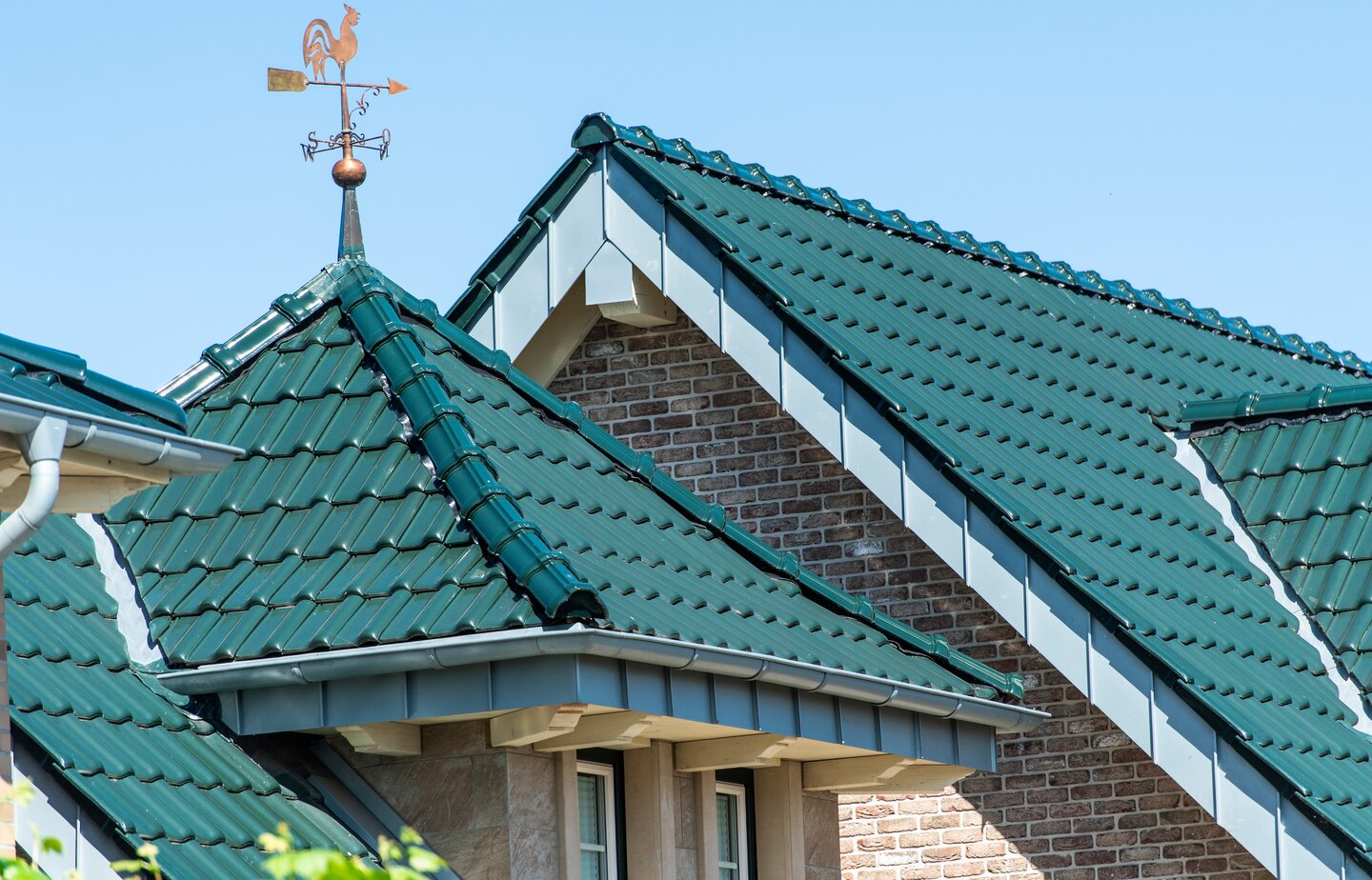

ERLUS E 58 MAX - Royal green
ERLUS E 58 MAX - Royal green

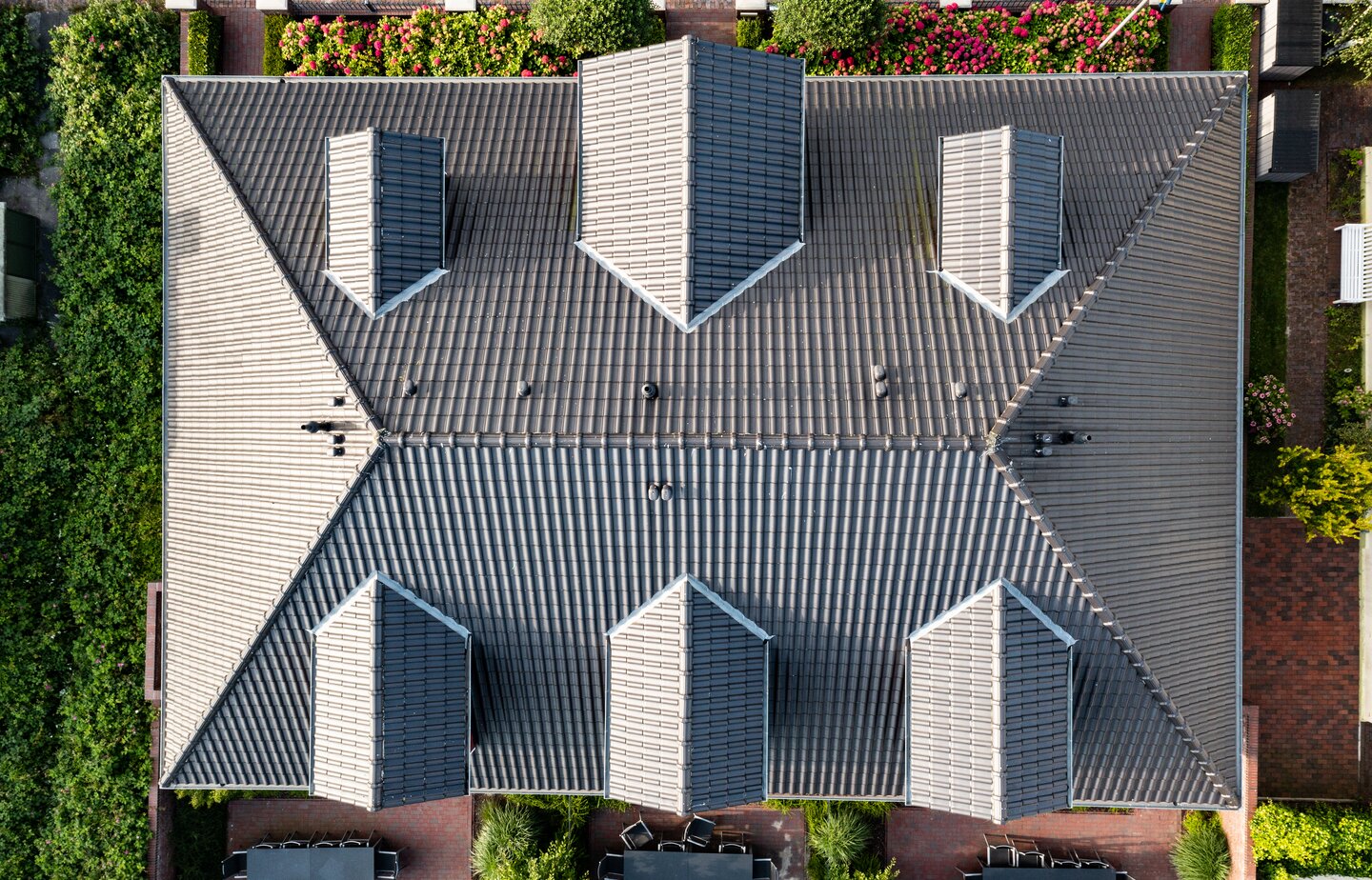

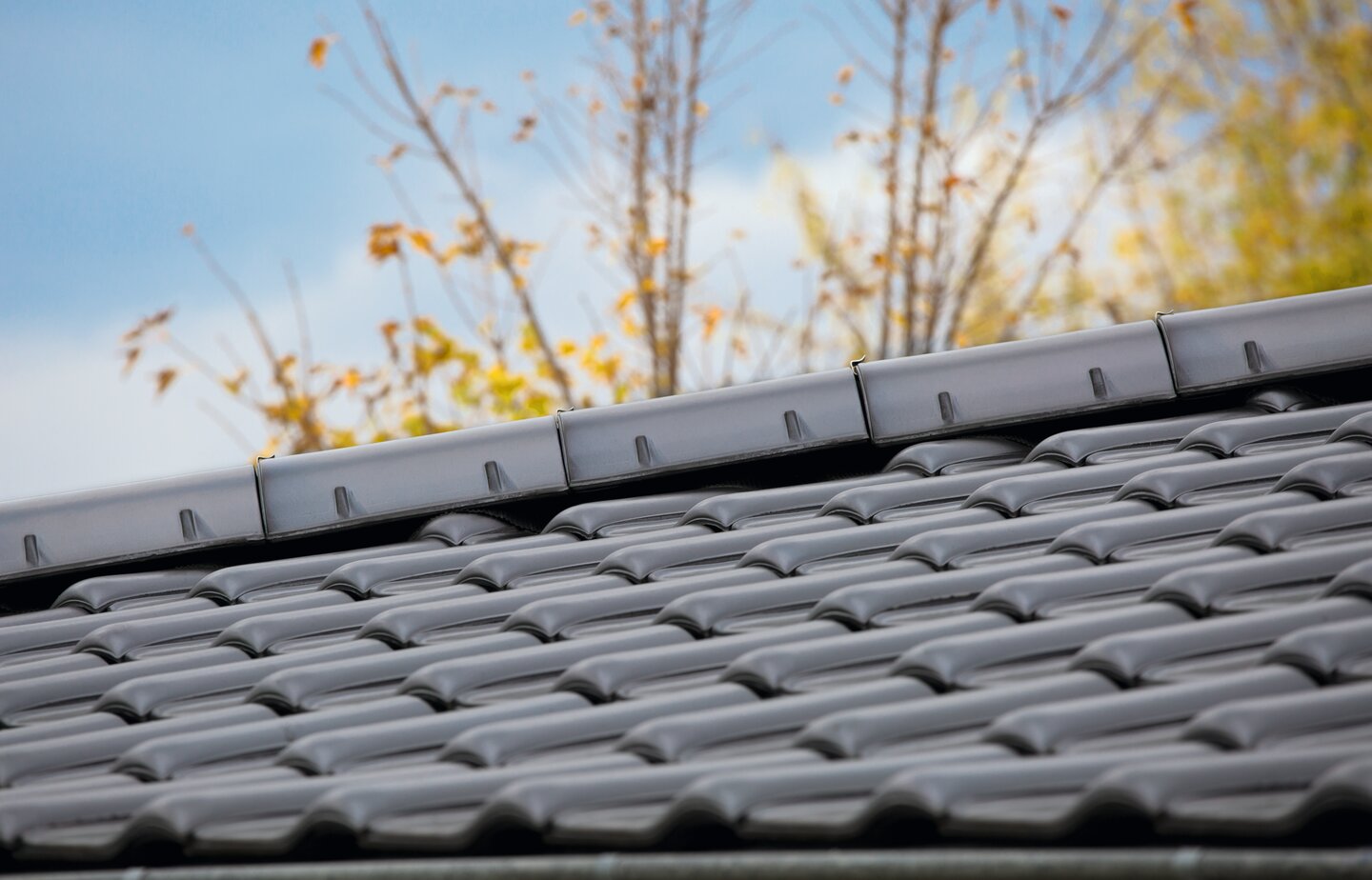

ERLUS E 58 MAX - Anthracite
ERLUS E 58 MAX - Anthracite
ERLUS E 58 MAX - Anthracite
ERLUS E 58 MAX - Anthracite

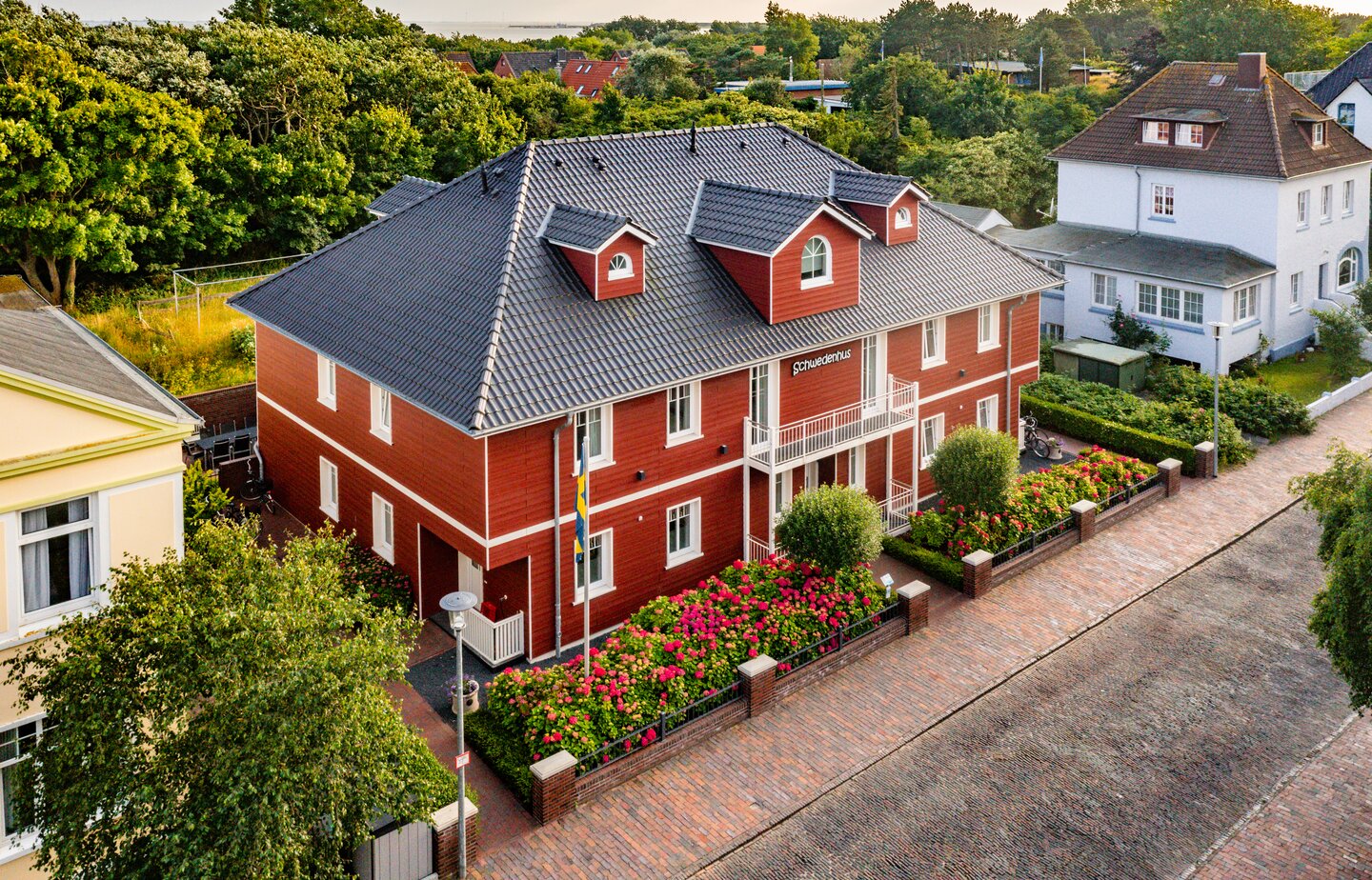

ERLUS E 58 MAX - Anthracite
ERLUS E 58 MAX - Anthracite The "large E58" can be laid quickly and profitably
Visually, the ERLUS E 58 MAX is inspired by its prototype, the ERLUS E 58; but the difference lies in its size. Its 20 per cent greater coverage makes the laying process more efficient. This makes it the first choice for roofs with a large surface area. Its generous interlocking tolerance makes the E58 MAX easier to install. Thanks to its double interlocking on the sides and perfectly interlocking head and foot, wind suction and driving rain cannot harm the roof.
Quantity required per m²: aprox. 11.5 Pieces
Minimum roof pitch: 10 °
Regular roof pitch: 20 °
